Leaf Spring Diff Lower Clamp Plate - Holes suit Diff tube diameter of 84mm & a Spring width of 64mm

Overall Rating :

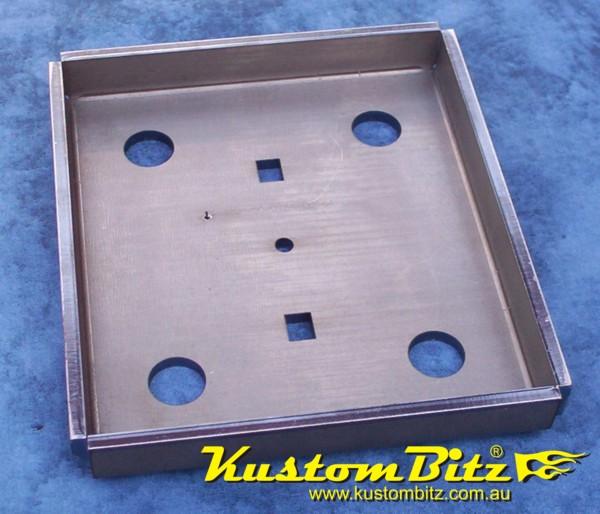

Clamp plate that allows the U botls to clamp the leaf spring to the differantial - suits wide spings, Ford Falcons XR,XT,XW,XY,XA,AB,XC,XD,XE. Picture shows actual bracket.
$54.00
Qty



Product Description
Part# KB-MSP-50-DT84-LC-64 : Kustom Bitz diff brackets range are stronger than the standard OEM units ~ suits Leaf spring style rear ends. Made from mild steel this bracket is heavy duty 5mm thick plate, it matches our diff hanger brackets, it has bigger folded returns on all 4 sides for added strength.

This part number has hole spacing for the 64mm wide springs [2 1/2 inch] and a diff tube diameter of 84mm

Price is per unit ~ one only.

The KustomBitz range is available to suit diff tube diameters of 64, 71, 76 and 84mm which covers the most common Borg Warner and Ford 9 inch diffs.  The idea is to match the diff clamp plates as you see here to the diff hanger brackets so that the holes for the "U" bolts line up perfectly in line so as to keep the U bolts tight and square to the diff tube.  Made for heavy hittin' engines these parts should keep the diff in place on the spring where it is meant to be.

For a matching diff hanger bracket click here

For a matching leaf spring clamping plate click here.The KustomBitz range is available to suit diff tube diameters of 64, 71, 76 and 84mm which covers the most common Borg Warner and Ford 9 inch diffs. Other diameters can be made to size however the idea is that a small amount can be linished off if your tube diameter is within one or two millimeters of the avalable sizes.This particular part number is for the 54mm wide narrow springs and will suit a diff tube diameter of 64mmPart# KB-MSP-60-DT64-LEAF-54-STD : Kustom Bitz diff brackets range are stronger than standard units ~ Leaf spring style bracket that welds to the differential axle tube. Made from mild steel this bracket is heavy duty 6mm thick plate wich is thicker than a standard 9 inch diff bracket, it is also slightly longer, it has bigger folded returns on the ends for strength and it grips the tube for a full 180 degrees.K  :  axle tube
